Overview
The original Elation VOLT series of battery-powered wireless DMX lighting fixtures has been discontinued and succeeded by the next-generation VOLT+ series.

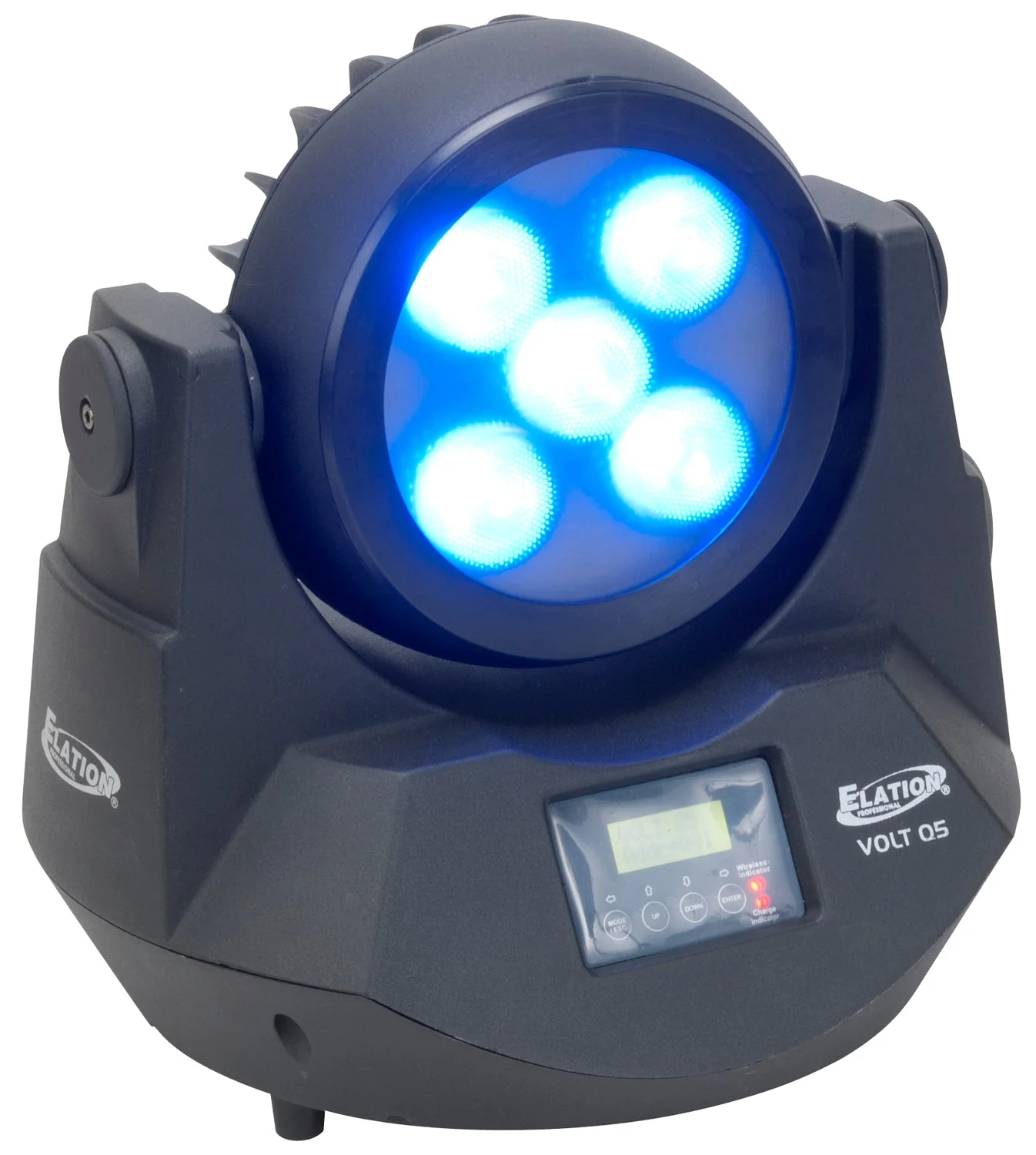

Customers looking to replace older VOLT fixtures, including the popular VOLT Q5 (VOL106), should consider the new VOLT+ PAR S and VOLT+ PAR L models.
The VOLT+ series builds on the original VOLT concept with updated LED color systems, rechargeable battery operation, and the new Aria X2 wireless DMX system.
Current VOLT+ Models
VOLT+ PAR S
Compact battery-powered LED PAR
30W RGBLA+UV LED color system
20° beam angle
IP65-rated construction
Over 12 hours of battery runtime under specified operating conditions
Aria X2 wireless DMX
Suitable for event uplighting and smaller applications
VOLT+ PAR L
Higher-output battery-powered LED PAR
60W RGBMA+UV LED color system
15° beam angle
IP65-rated construction
Over 12 hours of battery runtime under specified operating conditions
Aria X2 wireless DMX
Suitable for larger event spaces, architectural accents, and ballroom uplighting
Wireless DMX Compatibility
Important: The original VOLT and new VOLT+ series use different wireless DMX systems and are NOT directly wireless-compatible.
Original VOLT series: Uses EWDMX or W-DMX wireless protocols, depending on the model.
New VOLT+ series: Uses the Aria X2 wireless DMX system.
These wireless systems are not cross-compatible.
Customers upgrading from the original VOLT series to VOLT+ will need a compatible Aria X2 wireless DMX transmitter/source to use the new fixtures wirelessly.
Existing EWDMX or W-DMX transmitters cannot directly control VOLT+ fixtures through their built-in wireless receivers.
Customers operating a mixed fleet of original VOLT and VOLT+ fixtures should plan for separate compatible wireless systems or another appropriate control configuration.
Replacing an Original VOLT Q5
If you currently own a VOLT Q5 or another discontinued VOLT series fixture, the VOLT+ PAR S and VOLT+ PAR L are the current successor product family to consider.
However, these are not necessarily direct one-for-one replacements.
When selecting a new fixture, compare:
Light output and beam angle
Color-mixing capabilities
Battery runtime
Wireless DMX system and compatibility
Fixture size and mounting requirements
Accessories and charging arrangements
Important: Existing VOLT wireless transmitters, charging equipment, and accessories should not be assumed compatible with VOLT+.
Typical Applications
The VOLT+ series is designed for professional applications including:
Ballroom and event uplighting
Weddings and corporate events
Portable architectural accent lighting
Rental and production applications
Temporary indoor and outdoor event lighting
The VOLT+ PAR S provides a compact solution, while the VOLT+ PAR L offers higher output and a narrower beam for applications requiring greater intensity or more focused coverage.
Product Information
For current specifications, manuals, accessories, and downloads, visit:
VOLT+ PAR S
VOLT+ PAR L
VOLT+ PAR Battery Base
Need Help Choosing a Replacement?
If you are replacing an older VOLT fixture and are unsure which VOLT+ model or Aria X2 wireless control equipment you need, follow these steps.
Submit a Sales / Product Inquiry through the Elation Support Hub.
Include the following information:
Your existing VOLT fixture model
The wireless DMX transmitter or system currently being used
Your intended application
The number of fixtures you plan to replace or add
Our team can help identify the appropriate VOLT+ products and compatible wireless control equipment.
Note: Discontinued VOLT fixtures may still be supported for technical assistance, service, and replacement parts, subject to availability.
